Cummins ISX Broken Bolt Removal Kit Demo
Step 1: Exhaust manifold off
Step 2: Mount drill fixture
Step 3: Installing drill bushing
Step 4: Bushing can be installed in 14 different locations
Step 5: Note: The line up of all the holes is perfect

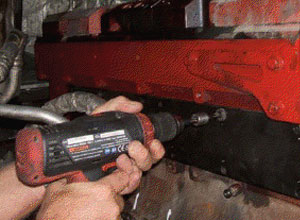

Step 6: Drill out the center of the bolt
By using this fixture and the instructions that come with the kit, you can drill out any of the exhaust manifold bolts 100% of the time,
thus, salvaging the original threads in less than 15 minutes.
Cummins User Testimonial:
Have you ever broke an exhaust manifold bolt on a Cummins ISX motor? Does it take at least 3 hours to take the bolt out? If so, I have the tool for you,
it will cut down on your time and labor.
The tool is made by Fulgham Machine & Tool Co. in Jackson, MI. Chuck Fulgham took the time from his busy schedule
to come down to our shop and made us a tool specifically for the problems we encountered cracking two cylinder heads by trying to drill and extract
the bolts out, breaking several drill bits and cutting our time down to virtually nothing.
This tool only designed only for the ISX motor, bolts right up to
the exhaust manifold. You can drill out any bolt hole you need without moving the tool around. Now instead of taking at least 3 hours it only takes
us about 15 mutes to drill out the bolts. This frees up a lot of our time, saves us money on drill bits, and saves us on purchasing new cylinder heads
which can cost $2500.00 per head.
This tool is something that any garage should invest in. In the long run the tool will pay for itself at least 10 times
over. Our company is very grateful for Chuck taking the time to make this tool for us.
Jason lsaacs - 2nd shift supervisor
Motor Carrier Service, Inc.
Many fleet shops are already using this new tool to solve their broken bolt problems. Many industries have yet to benefit from this tool
as well. If you have an issue with a broken bolt, contact us today!
Uses of the Broken Bolt Extractor Include:
